SK-5002-M and SK-5002-F are portable 4-in-1 standard kits
26.5 GHz 3.5mm-type Standard Kit
Featurs
Document

DOWNLOAD





 * Specifications are subject to change without notice.



The SK-5002-M and SK-5002-F are portable 4-in-1 standard kits (general purpose calibration kits) that are integrated into a compact package makeing it ideal for portable SOLT calibration on base station analyzers, VNAs and spectrum analyzers.

The compact unit can be easily stored in a tool case, handbag or even pocket. It also has a lanyard design that can be hung around the neck if needed.

Excellent electrical specifications make the SK-5002-M and SK-5002-F suitable for calibration of most network analyzers (e.g. Agilent E524xA, E522xA, E523xA, etc.).

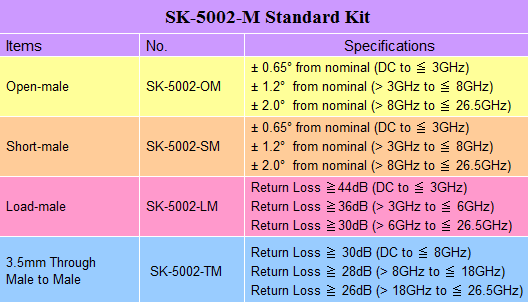

* SK-5002-M: includes male type of open, srort, load and thru.

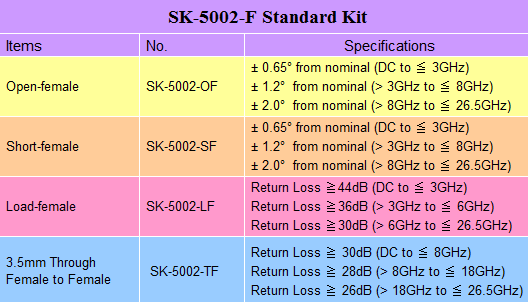

* SM-5002-F: includes female type of open, srort, load and thru.
* The specifications of the SK-5002-M and SK-5002-F are the same as SK-5002.
